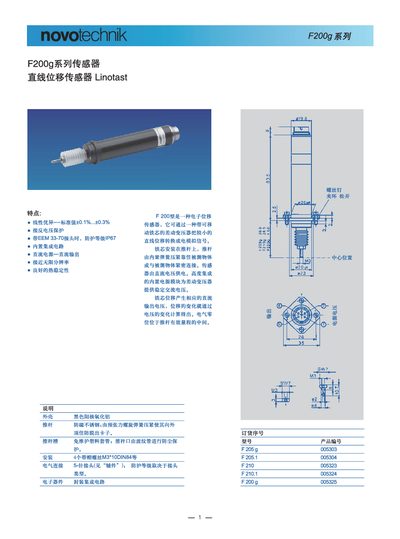

This manual describes the F200g series linear displacement sensors, including their mechanical structure, electrical connections, and environmental limits. It lists model variants (F205g, F210g, F220g) and provides part numbers for accessories and connectors.
Key sections cover mechanical parameters such as stroke and load, electrical parameters like supply voltage, sensitivity, and protection features, as well as installation guidance and recommended wiring. The document also includes environmental specifications such as temperature and humidity ranges. This manual is written in Chinese.
| Linearity | +0.19% to +0.3% |
|---|---|
| Working Stroke | 5 mm |
| Sensitivity (24 VDC) | 45 V/mm |
| Maximum Reverse‑Voltage Current | 1 A (or 50 A for 8 ms) |
| IP Rating (Connector) | IP67 |
| Temperature Coefficient of Sensitivity | 25 ppm/K |
The maximum reverse‑voltage current is 1 A (or 50 A for a pulse of 8 ms).
Linearity is specified as +0.19 % to +0.3 % of the full scale.
The connectors are rated IP67.
