The TIM series are non‑contact linear displacement sensors with absolute output and a working range up to 2500 mm. They are designed for harsh environments such as agricultural machinery, industrial equipment, and walking machines, offering high precision and dynamic performance without mechanical wear.

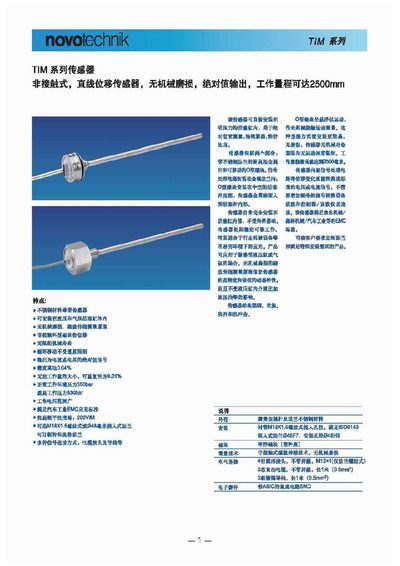

The manual includes model definitions, electrical parameters, environmental limits, mechanical mounting options, wiring connections, and ordering information. It also lists compatible EMC standards and optional accessories for customized installations. This manual is written in Chinese.
| Output signal | 0.5 VDC – 4.5 VDC |
|---|---|
| IP protection rating | IP67 |
| Repeatability | 0.01 % |
| Linearity | 0.04 % |
It offers output signals such as 0.5 VDC to 4.5 VDC, 0.1 VDC to 5 VDC, and 0.25 VDC to 4.75 VDC depending on the model.
The sensor is rated IP67, suitable for protection against dust and water immersion.
