P6500 is a precision position switch with an accuracy of 100 x 106 parts per million, a resolution of 0.007 degrees, and a maximum measurement speed of 10,000 rpm. It can be widely used in industrial production and scientific research fields.

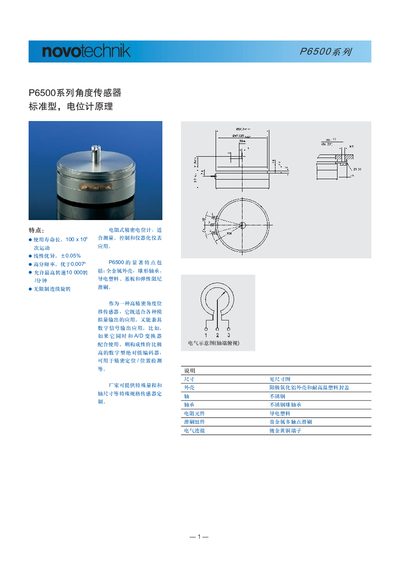

This manual describes the P6500 series angle sensor, highlighting its long service life, high linearity, and fine resolution. It details the sensor's construction, including a full‑metal housing, spherical bearings, conductive plastic, and multi‑contact slip‑brushes.
The document includes mechanical dimensions, electrical schematics, environmental limits, and ordering options, as well as recommended accessories such as couplings and display units for process control. This manual is written in Chinese.
| Maximum speed | 10,000 rpm |
|---|---|
| Resolution | better than 0.007° |
| Linearity | 0.05 % |
| Life expectancy | 100 × 10⁵ cycles |
| Maximum operating voltage | 42 V |
| IP protection rating | IP40 |
The sensor can rotate continuously through 360° with unlimited revolutions.
Install the sensor using three Z1-31 clamps.
Standard resistance options are 1 kΩ, 2 kΩ, and 5 kΩ with a tolerance of ±20 %.
