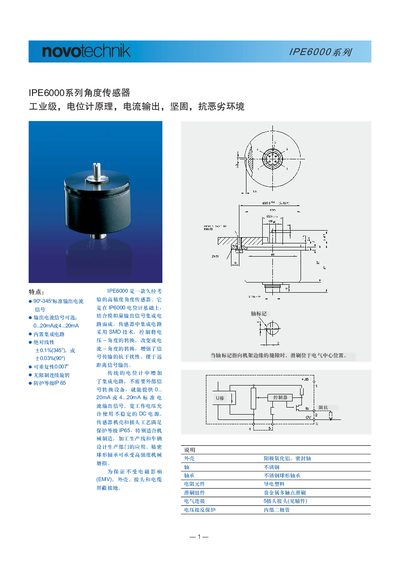

IPE6000 is an IP6000 series potentiometer. It is divided into 90°-345° potentiometer. The output current is 0.20mA~4.20mA. The measurement error is 0.1%(345°)~0.03%(90°). The resolution is 0.007°. It has IP65 protection grade.
The IPE6000 series is a high‑precision industrial angle sensor based on potentiometer principle with optional 0‑20 mA or 4‑20 mA current output. It features unlimited continuous rotation, IP65 protection, and robust stainless‑steel construction suitable for machinery, production lines, and vehicle design.
The document includes mechanical and electrical parameters, installation using three Z3‑31 clamps, ordering part numbers, and recommended accessories such as couplings and angled joints. Environmental limits, vibration resistance, and lifetime specifications are also listed. This manual is written in Chinese.
| Output current options | 0‑20 mA or 4‑20 mA |
|---|---|
| Protection rating | IP65 |
| Repeatability | 0.007° |
| Continuous rotation | Unlimited |
| Working voltage | 24 ± 6 VDC |
| Working temperature range | -25 °C to +70 °C |
| Vibration resistance | 5‑2000 Hz |
It is rated IP65, providing protection against dust and water.
The sensor can output either 0‑20 mA or 4‑20 mA standard current signals.
The repeatability is 0.007 degrees.
The sensor operates at 24 ± 6 VDC.
