Description of the SP2800 series connector. Including the connector's specifications, parameters, usage environment, installation dimensions and other information.

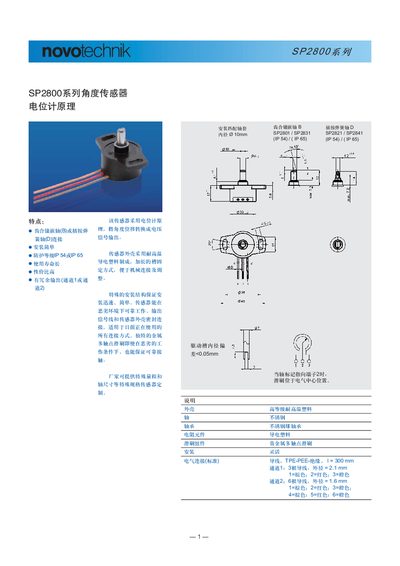

This manual describes the SP2800 series angle sensors, highlighting their potentiometer principle, high‑temperature plastic housing, and flexible mounting options. It outlines the sensor's features such as high reliability in harsh environments, sealed signal wiring, and multi‑contact slip‑ring design.
Technical data include mechanical dimensions, protection ratings (IP54/IP65), electrical parameters, wiring configurations for two channels, and environmental limits such as temperature range and vibration resistance. Installation steps and ordering specifications are also provided. This manual is written in Chinese.
| Protection rating | IP54 or IP65 |
|---|---|
| Maximum operating voltage | 42 V |
| Operating temperature range | -10 °C to 120 °C |
| Vibration resistance | 5 Hz – 2000 Hz |
| Design life | 5 × 10⁴ cycles |
The sensor is rated IP54 or IP65, depending on the model.
The maximum working voltage is 42 V.
The sensor can operate from –10 °C up to 120 °C.
Channel 1 uses three wires with an outer diameter of 2.1 mm; the colors are brown, red, and orange.
