The IP6500A is a rotary angle sensor that meets the EEM 33-70 standard. It has a 0.075% linearity, a 0.025% nonlinearity, a 100 x 106 cycles accuracy and a 0.007° angle resolution. The sensor is IP65 rated, making it suitable for use in harsh environments.

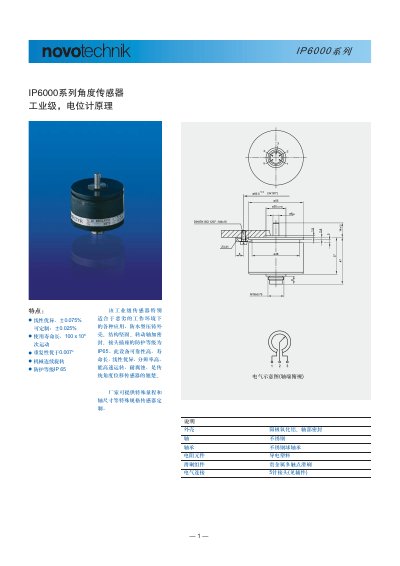

This manual describes the IP6000 angle sensor, highlighting its robust construction, IP65 protection rating, and suitability for harsh environments. It outlines key features such as high durability, low drift, and customizable range options.
The document includes detailed technical specifications, installation steps, wiring diagrams, and important safety notes. Parameters such as operating temperature, voltage, current, mechanical speed, and load capacity are listed to aid proper integration and maintenance. This manual is written in Chinese.
| Protection rating | IP65 |
|---|---|
| Operating temperature range | -40 °C to +100 °C |
| Maximum working voltage | 42 V |
| Maximum working current | 10 mA |
| Normal operating current | 1 pA |
| Maximum mechanical speed | 2000 min⁻¹ |
| Torque | 1.5 N·cm |
| Vibration frequency range | 5 Hz to 2000 Hz |
The sensor is rated IP65 for protection against dust and water.
It can operate from –40 °C up to +100 °C.
The maximum working voltage is 42 V.
