IPS6000 is a high-precision, low-noise, high-resolution analog voltage output sensor, using a 24-bit DAC, output accuracy of 0.1%, resolution of 100x106 counts, and can achieve 100% absolute temperature measurement. It can operate in a temperature range of -40 to +100 °C, with a maximum output voltage of 5V and a maximum current of 1mA. It weighs 7g, measures 40.3×12.3×11mm, and has a 4-pin Z4-1 interface. The conversion time is 360o±0.2o and can be configured with measurement range and temperature characteristics. It can be used to measure various temperature sensor signals.

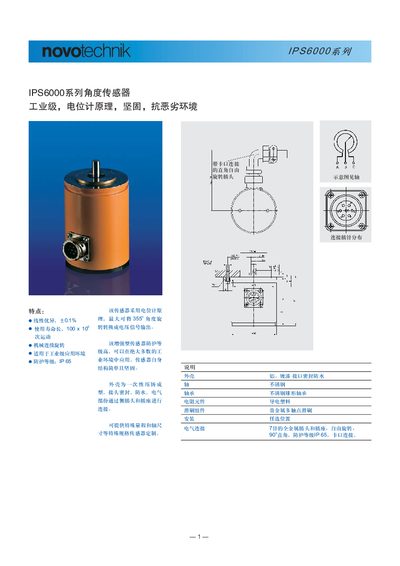

This manual describes the IPS6000 series angle sensor, highlighting its high accuracy, robust construction, and IP65/IP67 protection ratings for use in demanding industrial environments. It outlines the sensor's ability to output a full 0‑355° signal and offers options for custom ranges and special specifications.
The document includes detailed mechanical parameters such as 360° travel, 300 N maximum load, 10 N·cm torque, and a weight of 1200 g, as well as electrical specifications like 42 V maximum working voltage, 10 mA maximum current, and operating temperature from –40 °C to +100 °C. Installation methods, wiring diagrams, and important safety notes are also provided. This manual is written in Chinese.
| Mechanical travel | 360° |
|---|---|
| Maximum load | 300 N |
| Maximum torque | 10 N·cm |
| Weight | 1200 g |
| Operating temperature range | -40 °C to +100 °C |
| Protection rating | IP65 (IP67 for certain versions) |
The sensor is rated IP65, and some versions are rated IP67.
The sensor can rotate through a full 360 degrees.
It can withstand a maximum load of 300 N.
