This document introduces the features and characteristics of the AWS360ZE 360° sensor, including its operating temperature range, protection level, power supply voltage, and other information.

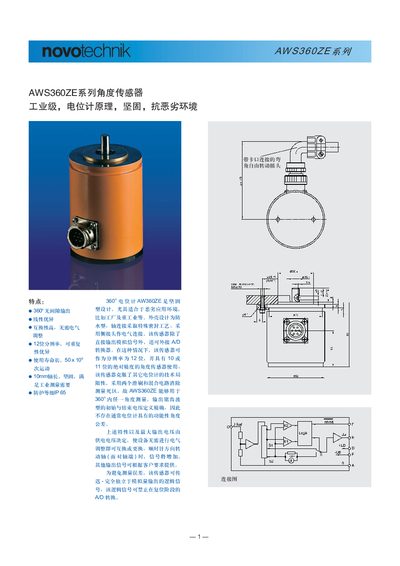

This manual describes the AWS360ZE series angle sensor, its 360° measurement capability, high resolution, and IP65 protection for harsh environments. It includes wiring diagrams, signal output options, and mechanical mounting information.
Key sections cover sensor features, electrical connections, installation steps, and detailed technical specifications such as temperature range, vibration resistance, and output signal characteristics. This manual is written in Chinese.
| Measurement range | 360° |
|---|---|
| Resolution | 0.002° |
| Ingress protection | IP65 |
| Operating temperature | 0–170 °C |
| Vibration frequency range | 10–2000 Hz |
| Maximum speed | 2000 min⁻¹ |
| Weight | 1200 g |
| Output signal (outdoor) | <2 mV |
| Supply voltage | +10 V |
The sensor can measure the full 360° angle range.
It is protected to an IP65 rating.
The sensor works from 0 °C up to 170 °C.
The sensor provides a resolution of 0.002°.
