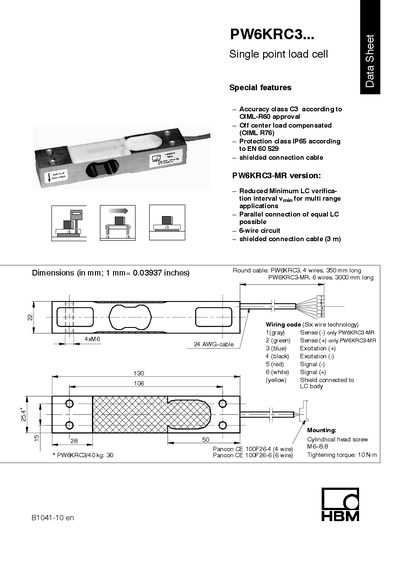

This document describes the features and characteristics of the PW6KRC3 and PW6KRC3-MR models of single point load cells, including accuracy class C3, off center load compensation, IP65 protection class, reduced minimum LC verification interval for multi range applications, parallel connection of equal LC, and 6-wire circuit.
The PW6KRC3 is a single‑point load cell with accuracy class C3 and IP65 protection, suitable for a range of weighing applications. It offers a shielded six‑wire connection and optional parallel connection for flexible installation.
The datasheet lists dimensions, wiring colour codes, mounting hardware, and a full set of technical specifications such as capacity (3 kg‑40 kg), sensitivity (2 mV/V), and temperature ranges. Material details include an aluminum measuring element, silicone‑rubber cover, and PVC cable sheath.
| Accuracy class | C3 |
|---|---|
| Maximum capacity | 3 kg – 40 kg |
| Sensitivity | 2 mV/V |
| Protection class | IP65 |
| Measuring element material | Aluminum |
| Cover material | Silicone rubber |
The PW6KRC3 load cell is rated to accuracy class C3.
It has an IP65 protection class.
It uses a six‑wire technology with colour‑coded connections for sense, excitation, signal, and shield.
The load cell can measure from 3 kg up to 40 kg.
