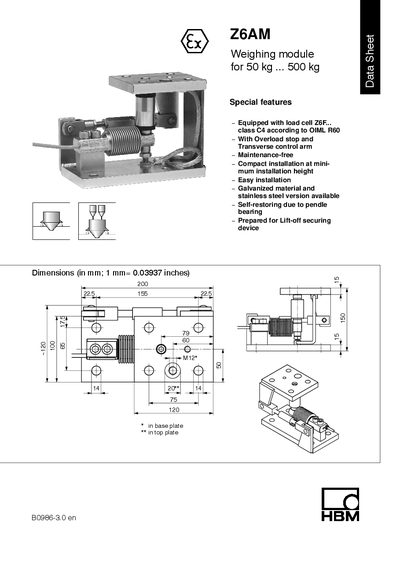

The Z6AM weighing module is available in a weight range of 50 kg to 500 kg and has the following features: equipped with the Z6F load cell, OIML R60 class C4, with overload stop and transverse control arm, maintenance-free, compact installation at minimum installation height, easy installation, galvanized and stainless steel versions available, self-restoring, and ready for a lift-off securing device.
The Z6AM weighing module from HBM is offered in galvanized or stainless‑steel versions and supports capacities from 50 kg to 500 kg. It features a load cell, overload stop, transverse control arm and a self‑restoring pendle bearing for compact, maintenance‑free installation.
The sheet provides detailed technical data, ordering codes for material, accuracy class, capacity, ATEX protection and cable length, as well as mounting examples for cylindrical and rectangular tank installations.
| Maximum capacity | 50 kg – 500 kg |
|---|---|
| Limit load | 150 % of maximum capacity |
| Restoring force (1 mm offset) | 28 % of applied load |
| Maximum side offset | ≤ 35 mm transverse |
| Maximum horizontal force | 5 kN |
| Material | Galvanized or stainless steel |
| Weight (incl. load cell) | 8–9 kg |
| Overload stop adjustment range | < 0.35 mm / 0.25 mm / < 0.8 mm |
The module is offered in galvanized or stainless‑steel versions.
It can handle up to 500 kg.
The module can sustain a horizontal force of up to 5 kN.
The overload stop can be set to less than 0.35 mm, 0.25 mm, or less than 0.8 mm depending on the option.
