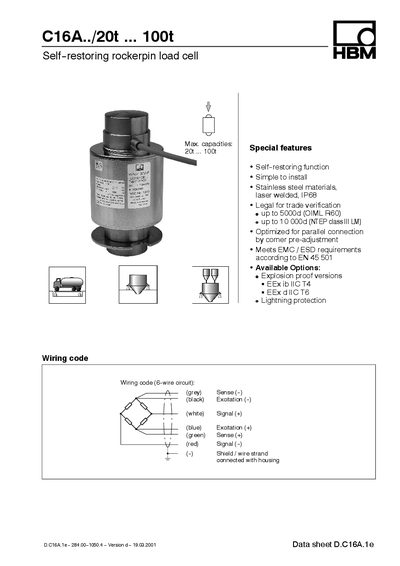

This document provides data information for the D.C16A.1e model, including maximum capacity, self-restoring function, easy installation, and material characteristics. The product is suitable for load measurement ranging from 20t to 100t and complies with legal trade verification requirements.
The C16A series is a self‑restoring rockerpin load cell made of stainless‑steel with IP68 protection. It offers simple installation, legal trade verification up to 5000 d (OIML R60) and 10 000 d (NTEP class III), and optional explosion‑proof versions.
The handbook contains the 6‑wire wiring diagram, full technical specifications (capacity, sensitivity, resistance, temperature ranges), dimensional drawings, mounting variations and a list of accessories such as thrust pieces and dowel pins. Options for explosion‑proof enclosures and lightning protection are also described.
| Sensitivity | 2 mV/V |
|---|---|
| Input resistance | 700 Ω ±20 |
| Output resistance | 706 Ω ±3.5 |
| Nominal ambient temperature range | -10 °C … +40 °C |
| Protection class | IP68 |
| Weight (with cable) | 21 kg |
The C16A uses a 6‑wire circuit: (grey) Sense (‑), (black) Excitation (‑), (white) Signal (+), (blue) Excitation (+), (green) Sense (+), (red) Signal (‑), and the shield is connected to the housing.
Two explosion‑proof versions are offered: EEx ib IIC T4 and EEx d IIC T6.
The load cell complies with protection class IP68 (and IP69K for high‑pressure water/steam cleaning).
