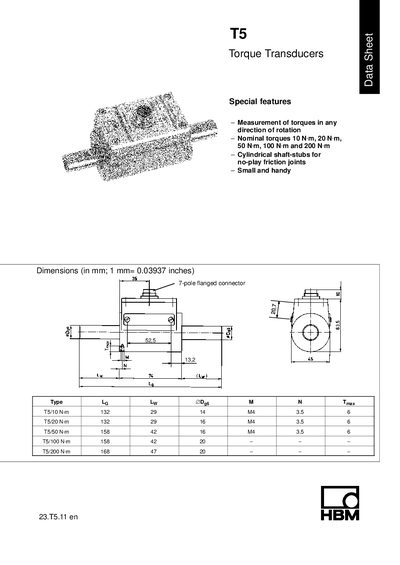

The document describes the features and characteristics of the products LG LW ∅Dg6 M N Tmax T5/10 NVm 132 29 14 M4 3.5 6 T5/20 NVm 132 29 16 M4 3.5 6 T5/50 NVm 158 42 16 M4 3.5 6 T5/100 NVm 158 42 20 – – – T5/200 NVm 168 47 20 – – –, which include measurement of torques in any direction of rotation, nominal torques of 10 NVm, 20 NVm, 50 NVm, 100 NVm, and 200 NVm, cylindrical shaft-stubs for no-play friction joints, and small and handy Torque Transducers T5.
The HBM T5 series torque transducers are designed for measuring torques in any direction of rotation. They are available in nominal torque ratings of 10, 20, 50, 100 and 200 Nm and feature cylindrical shaft‑stubs for friction‑free joints.
The datasheet lists detailed electrical and mechanical specifications, including accuracy class 0,1, sensitivity tolerances, temperature effects, protection class IP50, weight, maximum speed and recommended accessories such as the Kab 139A‑6 connecting cable.
| Accuracy class | 0,1 |
|---|---|
| Nominal torque | 10 Nm, 20 Nm, 50 Nm, 100 Nm, 200 Nm |
| Protection class | IP50 |
| Weight (approx.) | 0.5 kg |
The accuracy class is 0,1.
They are rated IP50 according to EN60529.
The series is offered in 10 Nm, 20 Nm, 50 Nm, 100 Nm and 200 Nm.
