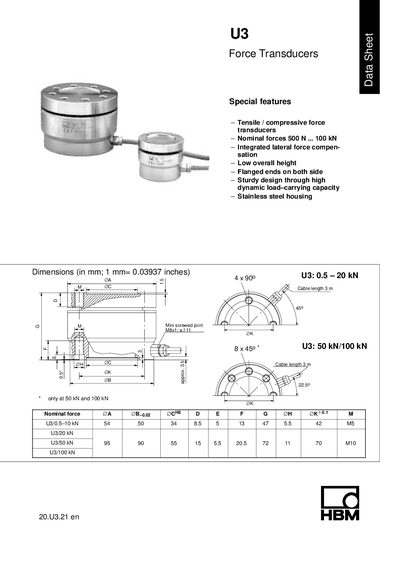

This document describes the features and characteristics of the U3 force transducer, including nominal force, accuracy, etc. The force transducer features tensile/compressive force transducers, low overall height, high dynamic load-carrying capacity, and stainless steel housing.
The HBM U3 series provides robust tensile/compressive force measurement with a low overall height, flanged ends on both sides, and stainless‑steel housing. Integrated lateral force compensation and a high dynamic load‑carrying capacity make it suitable for demanding industrial applications.
The datasheet lists detailed specifications such as accuracy class 0.2, input resistance > 345 Ω, isolation > 2 GΩ, and an excitation voltage range of 0.5 V to 12 V. Accessories include adapters and knuckle‑eye mounts, and installation can be performed with or without an adapter.
| Nominal force range | 0.5 kN – 100 kN |
|---|---|
| Accuracy class | 0.2 |
| Input resistance | > 345 Ω |
| Output resistance | 300 Ω – 400 Ω |
| Isolation resistance | > 2 GΩ |
| Reference excitation voltage | 5 V |
| Excitation voltage range | 0.5 V – 12 V |
| IP protection rating | IP65 |
| Cable length | 3 m |
| Weight | ≈ 0.6 kg (0.5‑10 kN) – ≈ 2.5 kg (100 kN) |
The U3 transducer can measure forces from 0.5 kN up to 100 kN.
A reference excitation voltage of 5 V is recommended, with an operating range of 0.5 V to 12 V.
The transducer is rated IP65 according to DIN EN60529.
The standard cable length is 3 meters.
