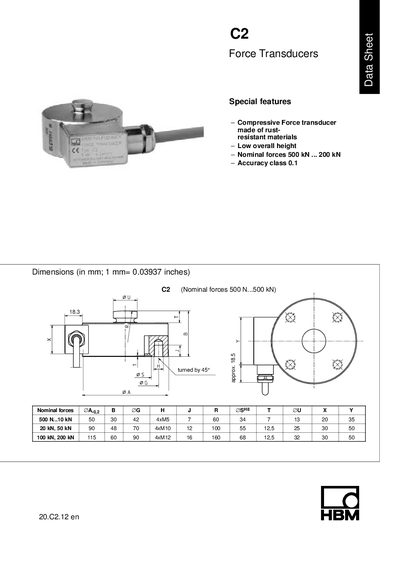

This document is a detailed description of the C2 model compressive force transducer, including product features and characteristics, technical parameters, and operating temperature range.
The C2 series from HBM are compressive force transducers designed with rust‑resistant materials and a low overall height. They cover nominal forces from 500 N up to 500 kN and meet an accuracy class of 0.1.
The sheet lists detailed electrical parameters, temperature ranges, mechanical dimensions, cable wiring assignments and optional pendle bearing accessories. It also includes protection ratings and storage conditions for reliable operation in industrial environments.
| Nominal force range | 500 N … 500 kN |
|---|---|
| Accuracy class | 0.1 |
| Weight | 0.4 kg |
| IP protection rating | IP67 |
The C2 transducer can measure forces from 500 N up to 500 kN.
It meets an accuracy class of 0.1.
The transducer is protected to IP67.
