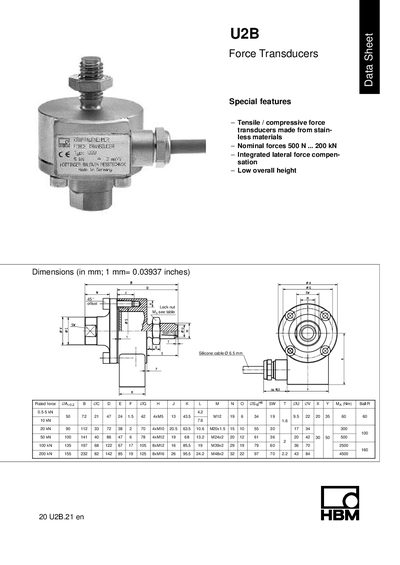

This document is the product description of the U2B force transducer. The sensor is made of stainless steel, with a rated force of 500N-200kN. It features integrated lateral force compensation and low overall height.
The U2B series are stainless‑steel tensile/compressive force transducers with integrated lateral force compensation and a low overall height. Nominal forces range from 0.5 kN up to 200 kN, and the devices are supplied with knuckle eyes (ZGOW, ZGUW) for mounting.
The sheet lists electrical characteristics such as a 5 V reference excitation voltage, 6‑wire cable options of 3 m, 6 m or 12 m, and an IP67 protection rating. Mechanical data include dimensions, weight, and recommended torque values for mounting. Optional accessories and temperature‑range upgrades are also described.
| Class of accuracy | 0.2 % – 0.4 % |
|---|---|
| Protection rating | IP67 |
| Cable length (6‑wire) | 3 m, 6 m, 12 m |
It complies with the IP67 protection standard.
The transducer can be supplied with 3 m, 6 m, or 12 m six‑wire cables.
