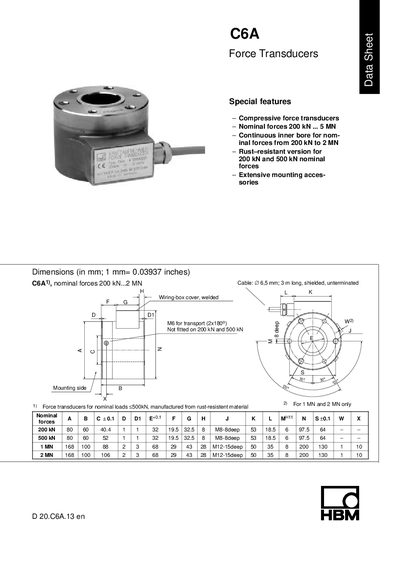

The document describes a force transducer called C6A that can be used to measure different nominal forces. It features rust resistance, continuous inner bore, and compressive force transducers.
The C6A series from HBM are compressive force transducers designed for high‑capacity measurements ranging from 200 kN up to 5 MN. They feature a continuous inner bore, rust‑resistant versions for lower forces, and a variety of mounting accessories such as wiring‑box covers, load buttons, spherical caps, and pendle bearing supports.
Key performance data include an accuracy class of 0.5, input resistance >345 Ω, output resistance ≈2 356 Ω, isolation resistance >5 × 10⁹ Ω, and an operating temperature range of –30 °C to 485 °C. The transducers are protected to IP67, have a 6 m shielded cable, and are supplied with detailed dimensional tables for each nominal force rating.
| Accuracy class | 0.5 |
|---|---|
| Cable length (6‑wire) | 6 m |
| Weight (without cable) | 1.4 kg – 33 kg (depending on nominal force) |
The C6A transducer has an accuracy class of 0.5.
A 6 m shielded, 6‑wire cable is supplied.
