C2 type load cells specifications table, including maximum load, measurement range, accuracy, etc.

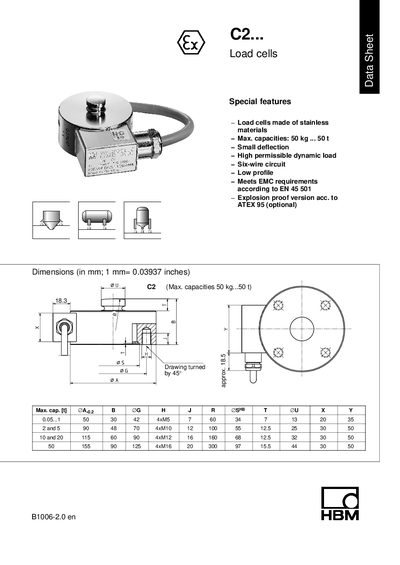

This document provides a data sheet for the HBM C2 series of load cells, which are manufactured from stainless steel materials. The product is designed for capacities ranging from 50 kg to 50 tons and features a six-wire circuit with low profile dimensions. It meets EMC requirements according to EN 45 501 and offers an optional explosion-proof version compliant with ATEX 95.
| Material | Stainless steel |
|---|---|
| Max. capacities | 50 kg ... 50t |
| Accuracy class | 0.2 |
| Reference excitation voltage | 5 V |
| Nominal temperature range | -10...40 °C |
The maximum permissible excitation voltage is 12 V for standard models and 18 V for others.
Yes, explosion-proof versions are available according to ATEX 95.
The hysteresis error is less than 0.15%.
