The RTN. load cells are low-profile and have a maximum capacity of 1 t . 470 t. They are legal for trade according to OIML, made of stainless steel, and have an IP68 protection class. The output signal is 2.85 mV/V and the input resistance is ≥4350 Ω. An ATEX-approved explosion-proof version is available as an option.

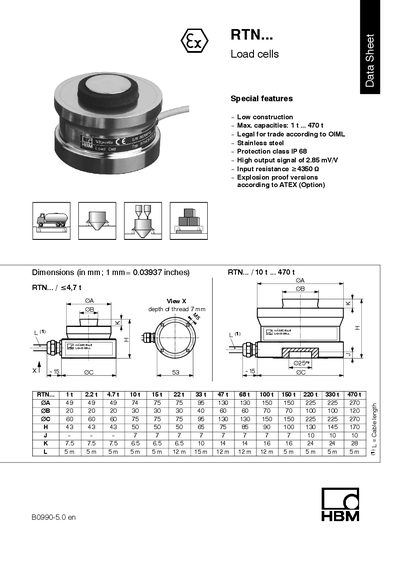

This document is a datasheet for the HBM RTN series of load cells. It details the special features, including low construction, stainless steel material, and an IP 68 protection class. The load cells are available in various capacities ranging from 1t to 470t and comply with OIML regulations.
| Nominal (rated) load | 1t...470t |
|---|---|
| Accuracy class | 0.05 c3 |
| Sensitivity | 2.85 mV/V |
| Input resistance | 4450 Ohm |
| Protection class | IP 68 |
| Material | Stainless steel |
The nominal range of excitation voltage is 5...30V, with a maximum of 60V.
Yes, explosion-proof versions are available according to ATEX for Zone 1 and Zone 2.
