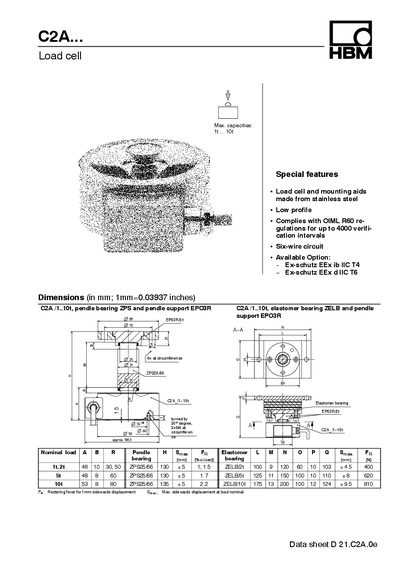

C2A load cell has the following features: The load cell and mounting aids are made of stainless steel, the profile is low, it complies with the OIML R60 regulation for up to 4000 verification intervals, the circuit is six-wire, and optional Ex-schutz EEx ib IIC T4 and Ex-schutz EEx d IIC T6 are available. The maximum capacity is 1t-10t.
The HBM C2A series load cells are stainless‑steel, low‑profile devices that comply with OIML R60 regulations and are available in capacities from 1 t to 10 t. They feature a six‑wire circuit and optional explosion‑proof protection (Ex‑schutz EEx ib IIC T4 / EEx d IIC T6).
Key technical data include accuracy classes D1 C3, sensitivities around 2 mV/V, IP67 protection, and wide temperature ranges for nominal, service, and storage conditions. Electrical characteristics such as input resistance (350‑450 Ω) and output resistance (356 Ω ± 1.5) are also listed.
| Rated capacity (E max) | 1 t, 2 t, 5 t, 10 t |
|---|---|
| Accuracy class (OIML R60) | D1 C3 |
| Sensitivity | 2 mV/V |
| Weight | ≈ 1.7 kg |
| Input resistance | 350 Ω … 450 Ω |
| Reference excitation voltage | 5 V |
The C2A series is available in accuracy classes D1 and C3 according to OIML R60.
The C2A load cell is offered in 1 t, 2 t, 5 t, and 10 t capacities.
