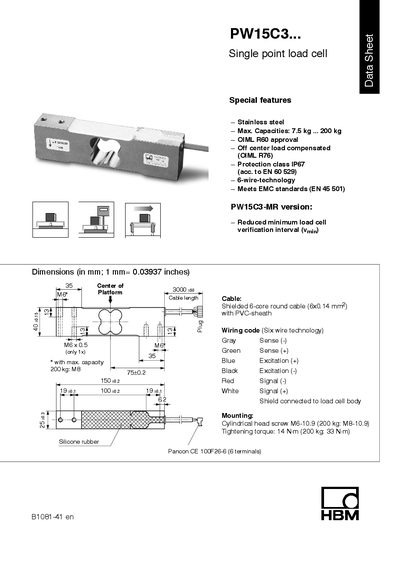

The PW15C3 single point load cell has a maximum capacity of 200kg and features water and dust resistance.
The PW15C3 is a stainless‑steel single‑point load cell with off‑center load compensation (OIML R76) and IP67 protection. It offers 6‑wire technology, meets EMC standards (EN 45 501), and is available in a MR version with a reduced verification interval.
The sheet lists capacities from 7.5 kg to 200 kg, accuracy class 1, sensitivity around 2 mV/V, and operating temperature ranges from –20 °C to +40 °C. Various cable lengths (1.5 m, 6 m, 12 m) and ATEX‑rated options are also detailed.
| Maximum capacity | 7.5 kg … 200 kg |
|---|---|
| Protection class | IP67 |
| Accuracy class | 1 |
| Sensitivity | 2.0 mV/V |
| Zero balance | 0 mV/V |
| Temperature range (operating) | +20 °C … +40 °C |
| Weight | ≈ 1.0 kg |
| Cable sheath material | PVC |
The PW15C3 has an IP67 protection class.
It can measure loads from 7.5 kg up to 200 kg.
The recommended tightening torque is 14 N·m (33 N·m for the 200 kg version).
Standard cable lengths are 1.5 m, 6 m, and 12 m.
