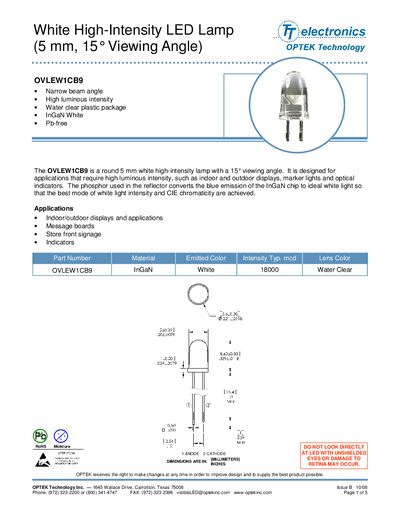

OVLEW1CB9 is a 5mm round white high-intensity LED lamp with a 15° viewing angle. It is designed for applications that require high luminous intensity, such as indoor and outdoor displays, marker lights and optical indicators. The phosphor used in the reflector converts the blue emission of the InGaN chip to ideal white light so that the best mode of white light intensity and CIE chromaticity are achieved.
The OVLEW1CB9 is a 5 mm round white high‑intensity LED lamp with a 15° viewing angle, designed for indoor/outdoor displays, message boards, storefront signage, and indicator applications. It uses an InGaN chip with a phosphor converter to produce white light with high luminous intensity.
The datasheet lists absolute maximum ratings, electrical characteristics, chromaticity coordinates, and typical electro‑optical curves. It also includes packaging details (500 pieces per bag) and compliance notes such as RoHS Pb‑free content.
| Viewing Angle | 15° |
|---|---|
| Package Material | Water clear plastic |
| Emitted Color | White |
| Continuous Forward Current | 25 mA |
| Peak Forward Current (10% duty, 1 kHz) | 100 mA |
| Storage Temperature Range | -40 °C to +100 °C |
| Operating Temperature Range | -40 °C to +95 °C |
| Power Dissipation | 100 mW |
| Pb Content | <1000 ppm (RoHS) |
| Packing Quantity | 500 pieces per bag |
The lamp has a 15° viewing angle.
It can operate from –40 °C up to +95 °C.
Each bag contains 500 pieces.
