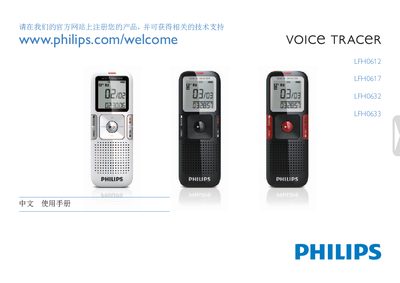

Philips Voice Tracer digital recorder user manual introduces the product features, safety information, scope of supply, overview, getting started, recording, playback, deletion, personalization settings, firmware update, FAQs, and technical specifications.
The Philips Voice Tracer series (LFH0612, LFH0617, LFH0632, LFH0633) is a compact digital voice recorder with built‑in USB storage, MP3 recording, and a 1 GB NAND flash memory. The manual explains safety precautions, battery handling, and how to use the device’s key functions such as recording, playback, and file management.
Detailed sections guide users through initial setup, connecting to a computer, using the built‑in or external microphone, inserting index marks, and updating firmware. A troubleshooting chapter addresses common issues, and a technical specifications table lists all hardware parameters. This manual is written in Chinese.
| Interface – USB | USB 2.0 mini |
|---|---|
| Earphone jack | 3.5 mm, ≥16 Ω |
| Microphone jack | 3.5 mm, 2.2 kΩ |
| Display | LCD, 34.5 mm diagonal (1.4") |
| Internal storage | 1 GB NAND flash |
| Recording format | MP3 (MPEG‑1 Layer 3) |
| Recording modes | HQ, SP, LP, SLP (mono MP3) |
| Bitrate (HQ) | 64 kbit/s |
| Bitrate (SP) | 48 kbit/s |
| Bitrate (LP) | 32 kbit/s |
| Bitrate (SLP) | 8 kbit/s |
| Maximum recording time (SLP) | ≈277 hours |
| Speaker | Dynamic, 23 mm (0.9") 110 mW |
| Battery | AAA alkaline, 1 cell |
| Battery life (SLP mode) | 15 hours (22 hours for LFH0632/LFH0633) |
| Dimensions (W×H×D) | 38 mm × 105 mm × 16.4 mm |
| Weight (with battery) | 55 g |
The battery may be depleted or not inserted correctly; replace the battery and ensure it is properly seated.
Check that the HOLD switch is off, ensure the battery is charged, and verify that the file count or storage capacity has not been exceeded.
Delete some recordings on the device or connect the recorder to a computer and move files to external storage.
