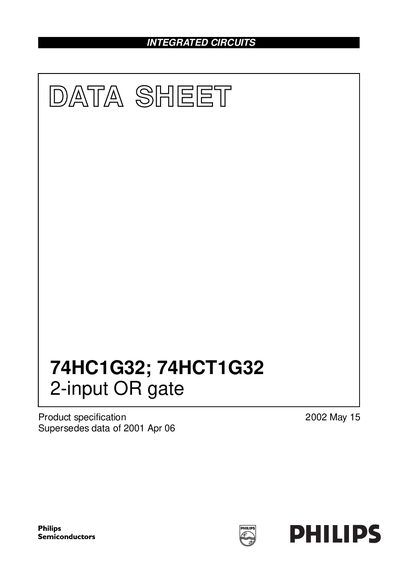

This document describes the features and characteristics of the 74HC1G32 and 74HCT1G32 2-input OR gates, including wide operating voltage range, symmetrical output impedance, high noise immunity, low power dissipation, balanced propagation delays, etc.
The Philips 74HC1G32 and 74HCT1G32 are high‑speed CMOS 2‑input OR gates. They provide the standard OR logic function in a very small 5‑pin package and are intended for a wide range of digital applications.
The document lists electrical characteristics, recommended operating conditions, package options and ordering information. Key parameters such as supply voltage range, propagation delay, power dissipation and pin assignments are provided for designers who need precise data for circuit implementation.
| Operating voltage range | 2.0 V – 6.0 V |
|---|---|
| Typical supply voltage (VCC) | 5.0 V |
| Package type | 5‑pin SOT353 (GW) plastic |
It provides the 2‑input OR function.
