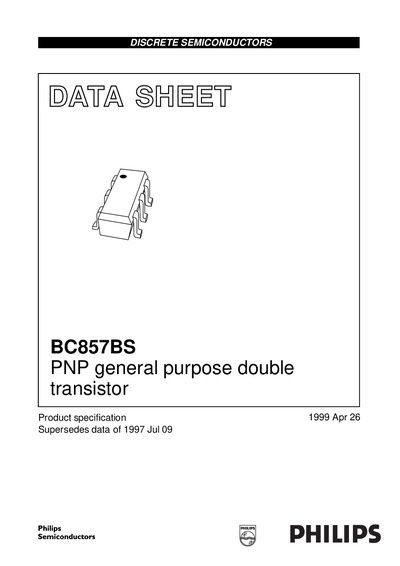

This datasheet provides detailed information on the BC857BS PNP double transistor, including its features, applications, description, pinout, and maximum ratings.
The BC857BS is a PNP general‑purpose double transistor offered in a surface‑mount SC‑88 (SOT363) package. It provides low collector capacitance, low collector‑emitter saturation voltage, and closely matched current gain, making it suitable for switching and amplification applications.
The document lists absolute maximum ratings, thermal characteristics, and typical electrical parameters, along with package dimensions and handling notes. It also includes a disclaimer that the part is not intended for life‑support equipment.
| Collector Current (Ico) max | 100 mA |
|---|---|
| Storage Temperature range | -65 °C to +150 °C |
| Junction Temperature max | 150 °C |
It can be stored from -65 °C up to +150 °C.
The transistor is supplied in a plastic surface‑mount SC‑88 (SOT363) package with six leads.
No, the part is not designed for use in life‑support appliances or systems.
