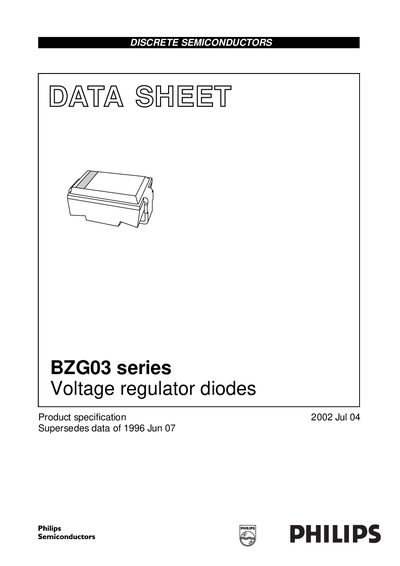

This data sheet provides the features and characteristics of the BZG03 series voltage regulator diodes. These voltage regulator diodes feature glass passivation, high maximum operating temperature, low leakage current, excellent stability, UL 94V-O classified plastic package and 10 to 270 V zener working voltage range for 35 types. These diodes are supplied in a 12 mm embossed tape.
The BZG03 series from Philips Semiconductors are surface‑mount voltage regulator diodes in a glass‑passivated DO‑214AC (SOD106) package. The devices feature a well‑defined, void‑free case made of transfer‑moulded thermo‑setting plastic and are supplied in 12 mm embossed tape.
The datasheet provides detailed electrical specifications such as forward voltage, Zener voltage range, and power dissipation limits, as well as thermal characteristics like junction‑to‑ambient resistance. Package dimensions, graphical performance curves, and handling notes are also included for designers.
| Forward voltage (If = 0.5 A) | 1.2 V |
|---|---|
| Thermal resistance junction‑to‑ambient | 100 K/W |
| Storage temperature range | -65 °C to +175 °C |
The forward voltage is 1.2 V at a forward current of 0.5 A.
The junction‑to‑ambient thermal resistance is specified as 100 K/W.
