FK-MCP 1,5/ 8-STF-3,81 is a product of PHOENIX CONTACT with a nominal current of 8 A, a nominal voltage of 160 V, a pitch of 3.81 mm, 8 positions and a spring cage connector in green.

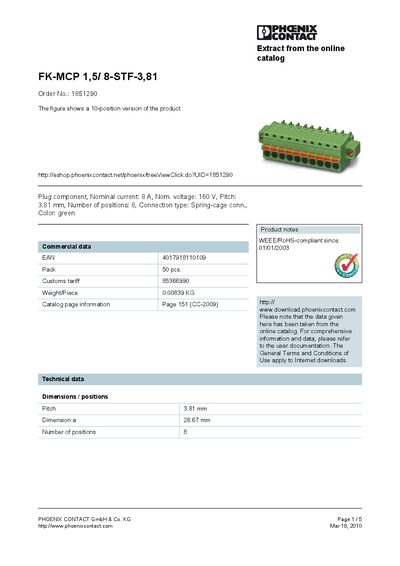

The FK-MCP 1,5/8-STF-3,81 is an 8‑position plug component with a 3.81 mm pitch, rated for 8 A nominal current and 160 V nominal voltage. It is supplied in a green‑colored housing and is available in a 10‑position version as shown in the catalog drawing.
The product complies with multiple safety standards (CSA, CUL, UL, EN‑VDE) and is RoHS‑compliant since 2003. The handbook lists accessories such as marker cards and screwdrivers, and provides ordering numbers, weight (0.00839 kg per piece), and packaging details (50 pcs per pack).
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 8 |
| Color | green |
| Weight per piece | 0.00839 kg |
The terminal block is rated for a nominal current of 8 A.
The pitch of the terminals is 3.81 mm.
It has 8 positions.
