The FRONT-MC 1,5/ 4-ST-3,81 is a plug component produced by PHOENIX CONTACT. It has a nominal current of 8 A, a rated voltage of 160 V, a pitch of 3.81 mm, 4 positions, a screw connection, and is green in color.
The FRONT-MC 1,5/4-ST-3,81 is a 4‑position screw‑connection terminal block designed for 1.5 mm² conductors. It is rated for 8 A nominal current and 160 V nominal voltage, with a 3.81 mm pitch and compact dimensions.

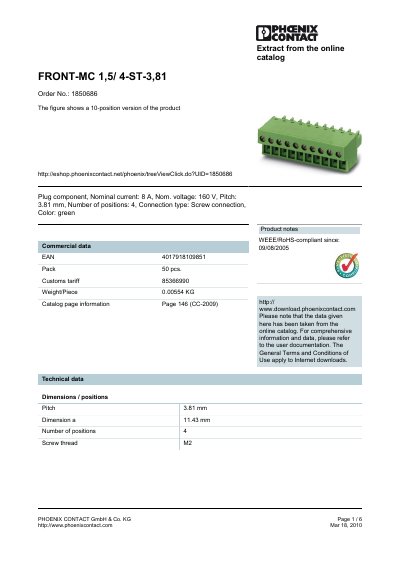

The datasheet provides detailed specifications such as tightening torque, surge voltage, certifications, weight, and a list of compatible accessories like marker pens, marker cards and a screwdriver. It also includes part numbers for related headers and plug components.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 4 |
| Dimension a | 11.43 mm |
| Weight per piece | 0.00554 kg |
| Tightening torque (min) | 0.22 Nm |
| Tightening torque (max) | 0.25 Nm |
| Rated surge voltage | 2.5 kV |
It is certified by CB, CSA, CUL, UL and VDE‑PZI.
The rated surge voltage is 2.5 kV.
