PT 1,5/ 5-PVH-5,0 is a connector produced by PHOENIX CONTACT company. It has a rated current of 12 A, a rated voltage of 250 V, a pitch of 5 mm, 5 positions, a screw connection type and a green appearance.
The PT 1,5/5-PVH-5,0 is a 5‑position screw‑connection terminal block with a 5 mm pitch, designed for a nominal current of 12 A and a nominal voltage of 250 V. It is supplied in a green (or black) housing and complies with WEEE/RoHS regulations since 01/01/2003.

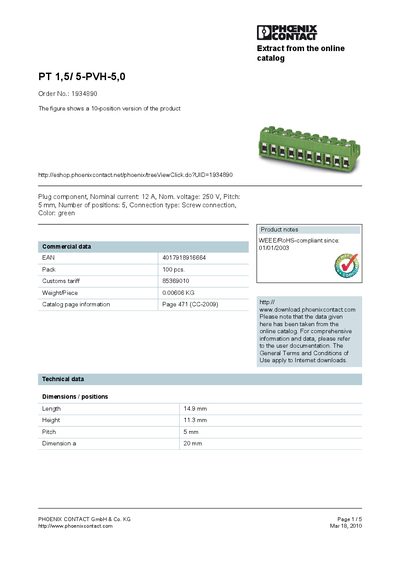

The handbook lists detailed technical specifications such as dimensions, weight, tightening torque, surge and rated voltages, as well as certification approvals (UL, CUL, etc.). For complete product information and ordering, refer to the online catalog or contact Phoenix Contact.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 5 |
| Length | 14.9 mm |
| Height | 11.3 mm |
| Weight per piece | 0.00606 kg |
| EAN | 4017918916664 |
| WEEE/RoHS compliance date | 01/01/2003 |
| Connection type | Screw connection |
| Color | green |
| Pack size | 100 pcs |
The terminal block is rated for a nominal current of 12 A.
It has 5 positions.
The pitch is 5 mm.
Each piece weighs 0.00606 kg.
