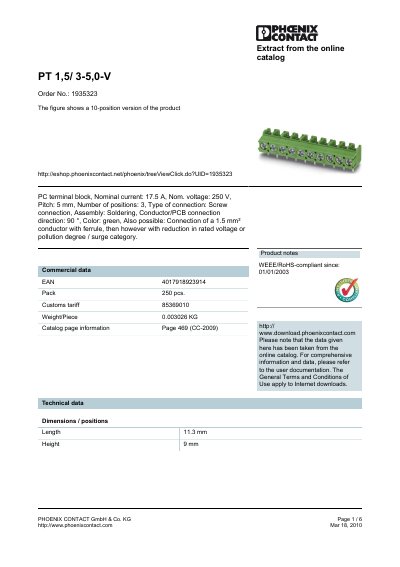

This is a product datasheet of PT 1,5/ 3-5,0-V from Phoenix Contact. It is a terminal block with a nominal current of 17.5 A, a nominal voltage of 250 V, a pitch of 5 mm, and a number of positions of 3. It is available in green.
The PT 1,5/ 3-5,0-V is a PC terminal block from Phoenix Contact designed for electrical connections with a nominal current of 17.5 A and a nominal voltage of 250 V. It features a 5 mm pitch, three positions, and can be mounted by screw connection or soldering. Optional ferrule connections are supported with reduced voltage rating.
Key specifications include a compact size (11.3 mm × 9 mm), green PA insulating material with UL 94 V0 fire rating, and a range of approved conductor cross‑sections from 0.2 mm² to 2.5 mm². The product complies with EN‑VDE standards and holds CCA, CUL, SEV and UL certifications.
| Nominal current | 17.5 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 3 |
| Insulating material | PA |
| Inflammability class | UL 94 V0 |
| Length | 11.3 mm |
| Height | 9 mm |
| Weight per piece | 0.003026 kg |
| EAN | 4017918923914 |
| Rated surge voltage (III/3) | 4 kV |
| Rated voltage (III/2) | 320 V |
| Maximum solid conductor cross‑section | 2.5 mm² |
| Screw thread | M2,6 |
| Tightening torque (min) | 0.35 Nm |
| Certifications | CCA, CUL, SEV, UL |
The terminal block is rated for a nominal current of 17.5 A.
It measures 11.3 mm in length and 9 mm in height.
It supports screw connection and can also be assembled by soldering.
The product is certified CCA, CUL, SEV and UL.
