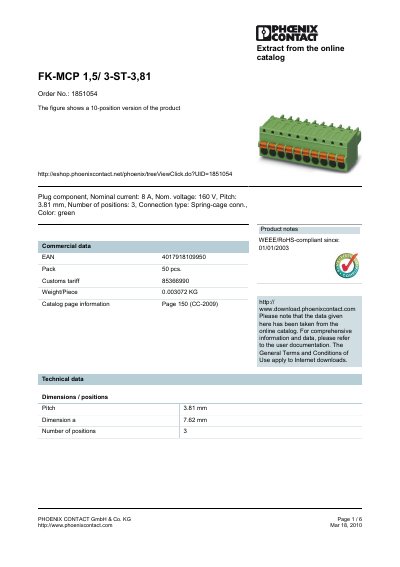

This document is about the product FK-MCP 1,5/ 3-ST-3,81 from PHOENIX CONTACT GmbH & Co. KG. The product is a plug component with a nominal current of 8A, a nominal voltage of 160V, a pitch of 3.81mm, 3 positions, a spring-cage connection type, and a green color. The product is WEEE/RoHS compliant. Technical data includes dimensions, insulating material group, rated surge voltage, rated voltage, connection standard, nominal current, nominal voltage, and nominal cross section.
The FK-MCP 1,5/3-ST-3,81 is a 3‑position plug component with a spring‑cage connection type, designed for 1.5 mm² conductors and rated for 8 A and 160 V. It features a 3.81 mm pitch, green housing, and complies with EN‑VDE standards.
The document lists detailed technical data such as nominal current, voltage, surge ratings, and material properties, as well as certifications (CB, CSA, CUL, GOST, UL, VDE‑PZI) and a range of accessories like marker pens and screwdriver tools. Additional related header products and a dimensioned drawing are also included.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 3 |
| Insulating material | PA |
| Inflammability class | UL 94 V0 |
| Rated surge voltage (III/3) | 2.5 kV |
| Maximum load current (1.5 mm²) | 8 A |
The nominal current is 8 A.
The pitch is 3.81 mm.
It is certified by CB, CSA, CUL, GOST, UL and VDE‑PZI.
The maximum solid conductor cross‑section is 1.5 mm².
