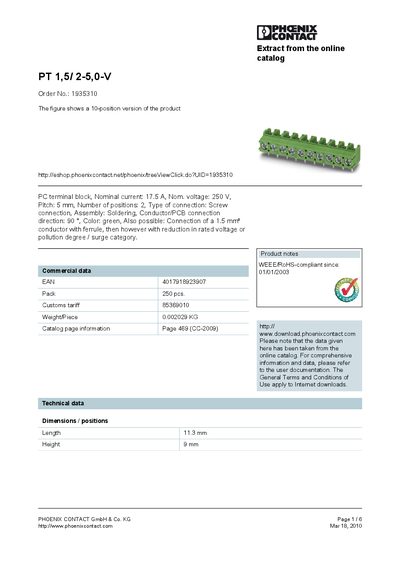

This document is about the product PT 1,5/ 2-5,0-V from PHOENIX CONTACT GmbH & Co. KG. The product is a PC terminal block with a rated current of 17.5A, rated voltage of 250V, pitch of 5mm, 2 positions, screw connection, soldering assembly, conductor/PCB connection direction of 90°, and green color. The product is compliant with WEEE/RoHS standards.
The PT 1,5/2-5,0-V is a 2‑position, 5 mm pitch PC terminal block with a nominal current of 17.5 A and a nominal voltage of 250 V. It is designed for screw connection and can be assembled by soldering, with a conductor/PCB connection direction of 90°. The block measures 11.3 mm in length and 9 mm in height, and each piece weighs 0.002029 kg.
The document provides detailed technical data such as rated surge voltage (4 kV), various voltage ratings (320 V, 630 V), insulating material (Al), and certification information (CUL, UL). Accessories include a marker card and a screwdriver, and the sheet contains diagrams for drilling plans and derating factors.
| Nominal current | 17.5 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 2 |
| Length | 11.3 mm |
| Height | 9 mm |
| Weight per piece | 0.002029 kg |
The terminal block is rated for a nominal current of 17.5 A.
The pitch of the terminal block is 5 mm.
Each terminal block weighs 0.002029 kg.
