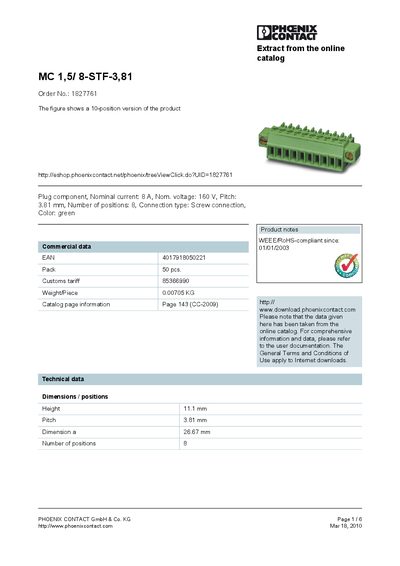

Phoenix Contact MC 1,5/8-STF-3,81 Product Data Sheet
The MC 1,5/8-STF-3,81 is a green‑colored screw‑connection terminal block from Phoenix Contact. It is designed for direct mounting, press‑in, or soldering applications and features a 3.81 mm pitch with eight positions.
The sheet lists key electrical parameters, mechanical dimensions, weight, and compliance information (RoHS/WEEE). It also provides part numbers for related accessories, tools, and alternative product variants.
Phoenix Contact 8-STF-3 specifications
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 8 |
| RoHS compliance date | 01/01/2003 |
Source: Phoenix Contact MC 1,5/8-STF-3,81 Product Data Sheet
All Phoenix Contact 8-STF-3 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the nominal current rating of the MC 1,5/8-STF-3,81?
The terminal block is rated for a nominal current of 8 A.
What is the pitch of the MC 1,5/8-STF-3,81 terminal block?
The pitch is 3.81 mm.
What is the nominal current rating of the MC 1,5/8-STF-3,5?
The terminal block is rated for a nominal current of 8 A.
How many positions does the MC 1,5/8-STF-3,5 have?
It has 8 positions.
What is the nominal current rating of the FK-MCP 1,5/8-STF-3,81 terminal block?
The terminal block is rated for a nominal current of 8 A.
What is the pitch (spacing) of the terminals?
The pitch of the terminals is 3.81 mm.
