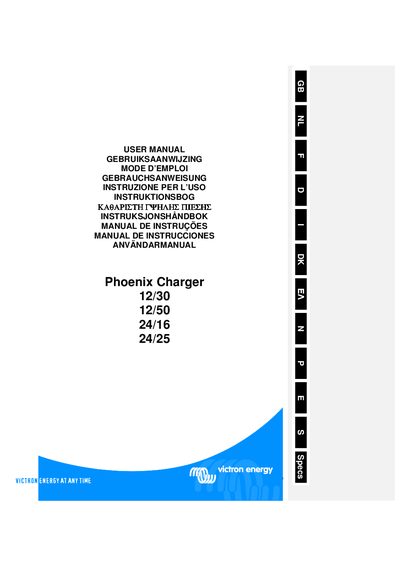

This manual is the user manual for Phoenix Charger 12/30, 12/50, 24/16, 24/25.
This manual covers safety and regulatory information, describing required precautions such as using a GFCI, avoiding electric shock, and ensuring proper ventilation. It also details the charger’s technology, adaptive charging characteristics, and supported battery types.
Installation instructions explain required tools, wiring guidelines, fuse ratings, and connection sequences, while the operation section describes the four‑stage charging process, LED indicators, remote‑control options, and adjustment procedures. Troubleshooting tips and a factory‑reset method are provided at the end of the document.
| Input voltage range | 120‑240 Vac |
|---|---|
| Supported battery configuration | up to 12 × 2 V cells |
| Fuse rating (12/30 model) | 40 A |
| Fuse rating (12/50 model) | 60 A |
| Fuse rating (24/16 model) | 20 A |
| Fuse rating (24/25 model) | 30 A |
| Supply wiring temperature rating | 75 °C (167 °F) |
| Storage temperature range | -20 °C to 60 °C |
The 12/30 model uses a 40 A fuse, the 12/50 model a 60 A fuse, the 24/16 model a 20 A fuse, and the 24/25 model a 30 A fuse.
