The 32 Series miniature PCB relays are 6 A relays with either a single pole changeover contact or a single pole normally open contact, a compact, low profile package, a sensitive DC coil with low power and a choice of cadmium-free contact material.

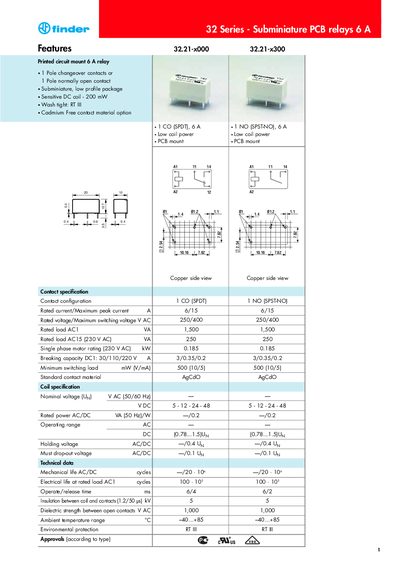

The 32 Series subminiature PCB relay from Finder is offered in a low‑profile, printed‑circuit‑mount package with a sensitive DC coil consuming only 200 mW. It is available with a 1 CO (SPDT) and 1 NO (SPST‑NO) contact, each rated for 6 A continuous current and up to 15 A peak.
Technical data include a wide range of coil voltages (5, 12, 24, 48 V), low holding voltage (0.4 V), and robust environmental ratings such as an ambient temperature range of –40 °C to +85 °C, 20 million mechanical cycles, and 100 million electrical cycles at rated load. The relay meets EN 61810‑1:2004 insulation standards and offers options for cadmium‑free contacts and wash‑tight designs.
| Rated current / Maximum peak current | 6 A / 15 A |
|---|---|
| Rated voltage / Maximum switching voltage | 250 VAC / 400 VAC |
| Rated load (AC1) VA | 1,500 VA |
| Coil voltage options | 5 V, 12 V, 24 V, 48 V |
| Holding voltage (AC/DC) | 0.4 V |
| Ambient temperature range | ‑40 °C … +85 °C |
| Mechanical life | 20 × 10⁶ cycles |
| Electrical life at rated load | 100 × 10⁶ cycles |
| Rated insulation voltage | 250 VAC |
| Dielectric strength between open contacts | 1,000 VAC |
The relay is rated for 6 A continuous current with a maximum peak current of 15 A.
Coil voltages of 5 V, 12 V, 24 V and 48 V are offered.
It provides one changeover (SPDT) contact and one normally‑open (SPST‑NO) contact, each rated for 6 A.
