This document provides an overview of the 89 90 Series sockets and their mounting accessories, including various types of sockets and installation methods.

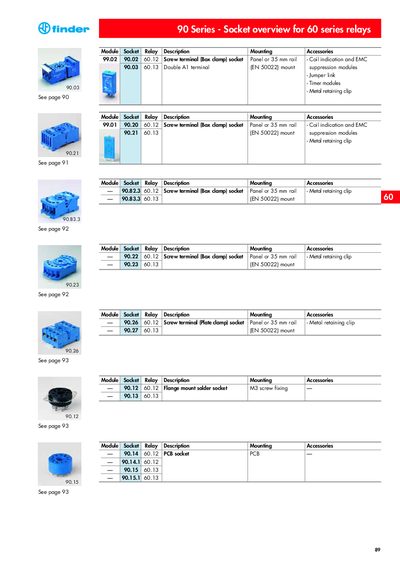

This document presents the socket types and accessories compatible with the 60 series relays in the Finder 90 Series range. It lists part numbers, mounting methods (box clamp, plate clamp, flange mount), and optional retaining clips for each socket model.
Technical data for each socket includes rated current and voltage, dielectric strength, protection class, ambient temperature range, screw torque, wire strip length, and maximum wire size. Packaging codes and identification methods for retaining clips are also described.
| Rated values | 10A-250V |
|---|---|
| Dielectric strength | 22kVAC |
| Protection category | IP 20 |
| Ambient temperature | -40...+70 °C |
| Screw torque | 0.5 Nm (0.8 Nm for some models) |
| Wire strip length | 10 mm |
| Maximum wire size | 1×6 mm / 2×2.5 mm (solid) or 1×10 mm / 2×14 mm (stranded) |
The sockets are rated for 10 A at 250 V.
Each socket has a dielectric strength of 22 kV AC.
All sockets comply with protection category IP 20.
The recommended screw torque is 0.5 Nm (0.8 Nm for certain models).
