This product is a 1 pole 6A electromechanical relay interface module, 6.2mm wide, ideal for PLC and electronic systems.

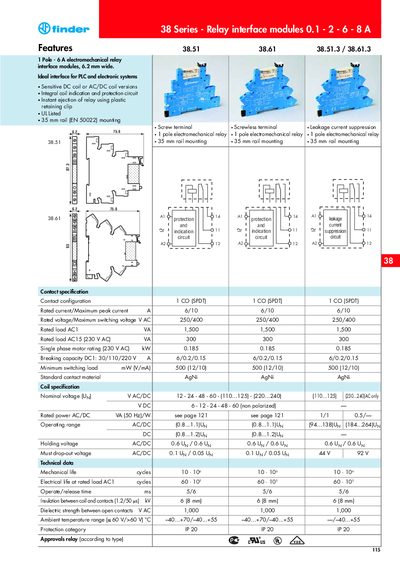

The 38 Series provides compact relay interface modules (6.2 mm or 14 mm wide) for PLC and electronic systems. Options include 1‑pole (0.1 A‑2 A‑6 A) and 2‑pole (0.1 A‑2 A‑8 A) electromechanical relays, as well as solid‑state relay versions, all with UL listing and 35 mm rail (EN 50022) mounting.
Modules feature integral coil indication, protection circuits, leakage‑current suppression, and a range of coil voltages (12‑24‑48‑60 V AC/DC, 6‑24‑60 V DC). Technical data such as rated current, voltage, mechanical life, insulation, and IP20 protection are provided for each variant.
| Rated current / Maximum peak current (1‑pole) | 6 A / 10 A |
|---|---|
| Rated voltage / Maximum switching voltage (1‑pole) | 250 V AC / 400 V AC |
| Rated load (1‑pole) | 1 500 VA |
| Mechanical life cycles | 10⁶ cycles |
| Insulation between coil and contacts | 6 kV (1.2/50 µs) |
| Protection category | IP20 |
The rated current is 6 A with a maximum peak current of 10 A.
All modules use a 35 mm rail mounting according to EN 50022.
Coil voltages include 12 V, 24 V, 48 V, 60 V AC/DC and 6 V, 24 V, 60 V DC for solid‑state versions.
The modules have an IP20 protection rating.
