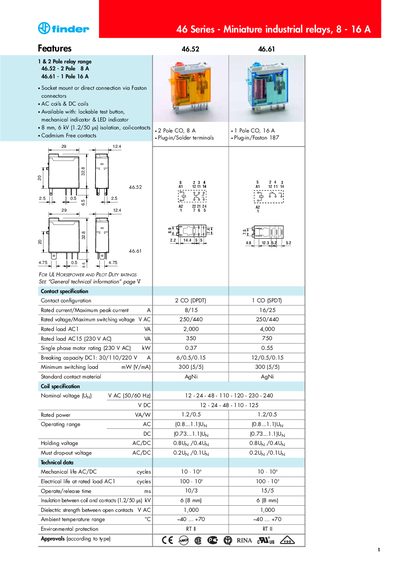

46 Series - Miniature industrial relays, 8 - 16 A
The Finder 46 Series comprises 1‑pole and 2‑pole miniature industrial relays rated for 8 A to 16 A. They are offered with socket‑mount or direct Faston connections, AC or DC coils, and optional lockable test buttons, mechanical or LED indicators, and cadmium‑free contacts.
The document provides detailed technical data, coil and contact specifications, ordering information, approved standards, and a list of compatible accessories such as flange‑mount adapters and rail‑mount sockets.
| Rated current (A) | 8 A / 16 A |
|---|---|
| Rated voltage (V AC) | 250 V / 440 V |
| Rated load (VA) | 2 000 VA / 4 000 VA |
| Contact material | AgNi |
| Mechanical life | 10⁶ cycles |
| Protection category | IP20 |
| Coil voltage options | 12‑24‑48‑110‑120‑230‑240 V (AC) / 12‑24‑48‑110‑125 V (DC) |
The relays can be supplied with AC coil voltages of 12 V, 24 V, 48 V, 110 V, 120 V, 230 V or 240 V, and DC coil voltages of 12 V, 24 V, 48 V, 110 V or 125 V.
The test button can be used in two ways: when the plastic pip is intact, pressing the button operates the contacts and releasing it returns them; when the pip is broken, pressing and rotating the button latches the contacts in the operating state until rotated back.
The relays have an IP20 protection category.
