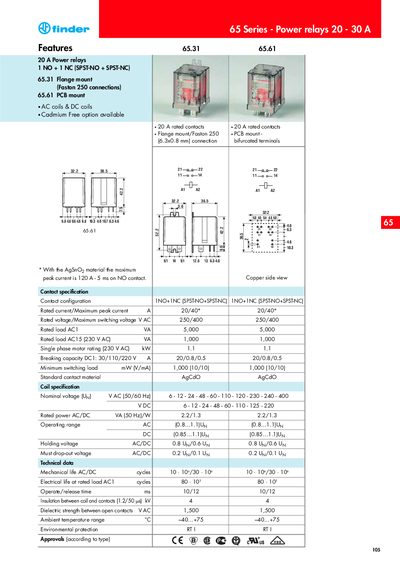

105 65 series power relays
The 65 Series relays are offered in two current ratings, 20 A and 30 A, with both normally‑open (NO) and normally‑closed (NC) contacts (SPST‑NO + SPST‑NC). They can be mounted using a Faston 250 flange (65.31) or a PCB mount with bifurcated terminals (65.61). Both AC and DC coil versions are available, with a wide range of nominal coil voltages.
Technical data include rated voltage of 250 V/400 V AC, rated load up to 7 500 VA, mechanical life of up to 10⁶ cycles, and environmental protection rating RTI. The relays meet CE approvals and offer cadmium‑free options for the contact material.
| Rated current (20 A version) | 20 A (max peak 40 A, 5 ms) |
|---|---|
| Rated current (30 A version) | 30 A (max peak 50 A, 5 ms) |
| Coil nominal voltage options (AC) | 6‑12‑24‑48‑60‑110‑120‑230‑240‑400 V |
| Coil nominal voltage options (DC) | 6‑12‑24‑48‑60‑110‑125‑220 V |
| Mechanical life | 10⁶ cycles (AC) / 30 × 10⁶ cycles (DC) |
| Insulation between coil and contacts | 4 kV (1.2/50 µs) |
| Environmental protection | RTI |
The relays can be ordered with AC coil voltages of 6, 12, 24, 48, 60, 110, 120, 230, 240 or 400 V, and DC coil voltages of 6, 12, 24, 48, 60, 110, 125 or 220 V.
The 20 A version is rated for a continuous current of 20 A and a maximum peak current of 40 A for 5 ms.
The relays are rated with RTI environmental protection.
