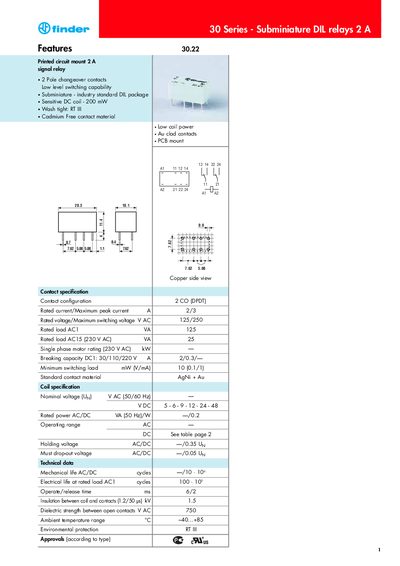

30 Series - Subminiature DIL relays 2 A
The Finder 30 Series subminiature DIL relays are designed for printed‑circuit‑board mounting and feature low‑coil power consumption, Au‑clad contacts, and a wash‑tight (RT Ill) construction. They are available with a sensitive DC coil (200 mW) and provide 2 A continuous contact rating in a compact DIL package.
The datasheet lists the contact configuration (2 CO DPDT), rated voltage (125/250 V AC), coil voltage options (5‑6‑9‑12‑24‑48 V DC), and key performance figures such as operate/release time (6/2 ms), insulation ratings (1.5 kV between coil and contacts, 750 V dielectric strength), and environmental limits (‑40 °C to +85 °C). Ordering information and special versions (wash‑tight, PCB‑mount, AgNi+Au contacts) are also provided.
| Contact configuration | 2 CO (DPDT) |
|---|---|
| Rated current / Maximum peak current | 2 A / 3 A |
| Rated voltage / Maximum switching voltage | 125 V / 250 V AC |
| Coil nominal voltage options | 5‑6‑9‑12‑24‑48 V DC |
| Rated power (AC/DC) | 0.2 W |
| Holding voltage (AC/DC) | 0.35 V |
| Drop‑out voltage (AC/DC) | 0.05 V |
| Operate / release time | 6 ms / 2 ms |
| Insulation between coil and contacts | 1.5 kV |
| Dielectric strength between open contacts | 750 V AC |
| Ambient temperature range | -40 °C … +85 °C |
| Bounce time (NO/NC) | 1 ms / 3 ms |
| Vibration resistance (NO/NC) | 15 g |
| Shock resistance | 16 g |
| Power loss without contact current | 0.2 W |
| Power loss with rated current | 0.4 W |
| Recommended PCB spacing | 5 mm |
The relay is rated for a continuous current of 2 A with a maximum peak current of 3 A.
Coil voltages are offered at 5, 6, 9, 12, 24, and 48 V DC.
The relay uses a 2 CO (DPDT) contact configuration.
It can operate from –40 °C up to +85 °C.
