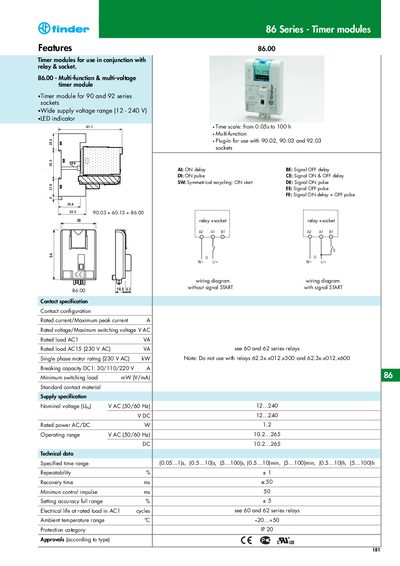

Timer modules in the 86 series are used in conjunction with relays and sockets. The 86.00 model is a multi-function, multi-voltage timer module that can be used with 90 and 92 series sockets. The module has a wide supply voltage range of 12-240V and an LED indicator. Please note that the 86.00 model cannot be used with 62.3x.x012.x300 and 62.3x.x012.x600 model relays.
This handbook describes the Finder 86 Series timer modules, which are plug‑in modules designed for use with 90, 92, 94 and 95 series relay sockets. It covers three variants – the multifunction 86.00 module and the mono‑function 86.10 (ON delay) and 86.20 (ON pulse) modules – and lists their wiring diagrams, contact configurations and functional descriptions.
Key specifications such as supply voltage range, power consumption, protection rating, ambient temperature limits and timing ranges are provided, together with ordering information, accessory options and EMC test data. The document is intended for engineers selecting and integrating the modules into control panels.
| Supply voltage range (AC) | 12 … 240 V AC (50/60 Hz) |
|---|---|
| Supply voltage range (DC) | 12 … 240 V DC |
| Rated power | 1.2 W |
| Protection category | IP20 |
| Ambient temperature range | -20 °C … +50 °C |
| Time scale | 0.05 s … 100 h |
The modules operate from 12 V to 240 V AC (50/60 Hz) or the same range on DC supply.
All 86 Series timer modules are rated IP20.
They are specified for operation between –20 °C and +50 °C.
