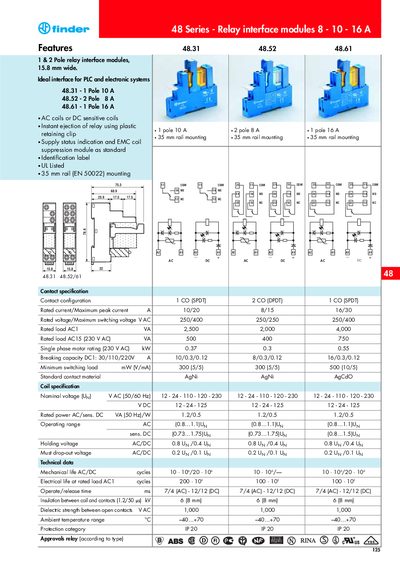

This document describes the features and characteristics of the 48 series relay interface modules, including 1-pole and 2-pole relay interface modules, which are ideal for PLC and electronic systems. The modules are 15.8 mm wide and offer options for AC coils or DC sensitive coils. The relays can be instantly ejected using a plastic retaining clip. The modules come with supply status indication and EMC coil suppression module as standard, along with an identification label. They are UL Listed and can be mounted on a 35 mm rail (EN 50022).
The Finder 48 Series offers compact 1‑pole (SPDT) and 2‑pole (DPDT) relay interface modules, each 15.8 mm wide and designed for PLC and electronic system integration. All modules are UL listed, include a supply‑status LED, EMC coil‑suppression, and mount on a standard 35 mm rail (EN 50022).
Technical data include rated currents up to 16 A, rated voltages up to 250 V AC, mechanical life of up to 10 million cycles, and IP20 protection. Detailed coil specifications, contact materials, and ordering options are provided for both AC and DC sensitive coils.
| Rated current / Maximum peak current | 10 A / 20 A (1‑pole), 8 A / 15 A (2‑pole), 16 A / 30 A (1‑pole 16 A) |
|---|---|
| Rated voltage / Maximum switching voltage | 250 V AC / 400 V AC (1‑pole), 250 V AC / 250 V AC (2‑pole) |
| Protection category | IP20 |
| Mechanical life (AC/DC cycles) | 10 million cycles |
| Electrical life at rated load (AC1 cycles) | 200 million cycles |
| Mounting type | 35 mm rail (EN 50022) |
| UL listing | UL Listed |
All modules are designed for 35 mm rail (EN 50022) mounting.
Yes, the modules are UL listed.
The modules have an IP20 protection category.
The series offers 1‑pole 10 A, 2‑pole 8 A, and 1‑pole 16 A versions.
