56.32, 56.32-0300, 56.34 are 3 models of toggle switches.

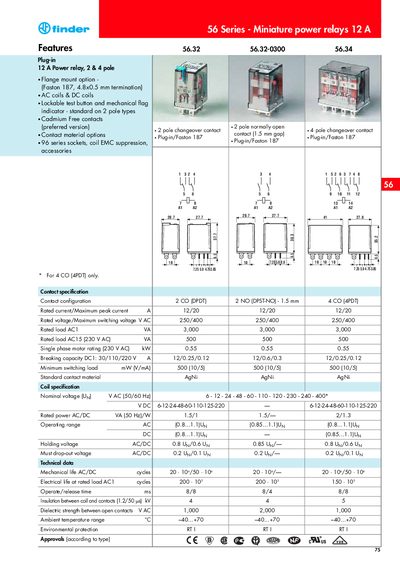

The Finder 56 Series miniature power relays are offered in 2‑pole and 4‑pole configurations with a rated current of 12 A (maximum peak 20 A) and a rated voltage of 250/400 V AC. They feature plug‑in (Faston 187) mounting, cadmium‑free AgNi contacts, and optional lockable test button with mechanical flag indicator.
The sheet provides detailed coil specifications (multiple AC/DC nominal voltages from 6 V to 400 V), mechanical and electrical life data, insulation ratings, and environmental protection (RTI). Ordering options, accessories such as sockets and retaining clips, and approval markings (CE, IEC) are also listed.
| Rated current (max peak) | 12 A / 20 A |
|---|---|
| Rated voltage (max switching) | 250 V / 400 V AC |
| Contact material | AgNi (standard) |
| Coil nominal voltage options (AC) | 6‑12‑24‑48‑60‑110‑120‑230‑240‑400 V |
| Coil nominal voltage options (DC) | 6‑12‑24‑48‑60‑110‑125‑220 V |
| Mechanical life | 20 000 cycles |
| Operate / release time | 8 ms / 8 ms (2‑pole), 8 ms / 4 ms (4‑pole) |
| Insulation between coil and contacts | 4 kV (2‑pole), 5 kV (4‑pole) |
| Dielectric strength between open contacts | 1 000 V AC (changeover), 2 000 V AC (normally open) |
| Ambient temperature range | -40 °C … +70 °C |
The relay is rated for 12 A continuous current with a maximum peak current of 20 A.
Coils are offered for AC voltages 6‑12‑24‑48‑60‑110‑120‑230‑240‑400 V and DC voltages 6‑12‑24‑48‑60‑110‑125‑220 V.
The relay is specified for 20 000 mechanical cycles.
Standard contacts are made of silver‑nickel alloy (AgNi).
