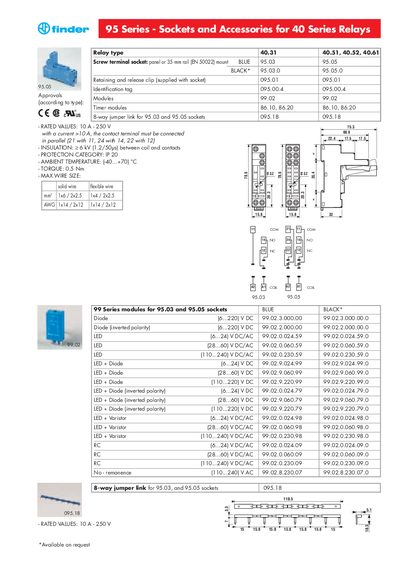

This document is about 95 Series - Sockets and Accessories for 40 Series Relays, which introduces the features and characteristics of the products in this series, including the types, colors, models of the sockets, as well as the types, models of the accessories.
The Finder 95 Series handbook provides a comprehensive overview of the socket and accessory range for the 40, 41, 43 and 44 series relays. It details each product type – screw terminal sockets, PCB sockets, retaining clips, identification tags and 8‑way jumper links – together with their part numbers.
Technical data such as rated current and voltage, insulation strength, protection class, ambient temperature limits, torque and maximum wire size are listed for each variant, allowing engineers to select the correct component for their control panels.
| Rated current / voltage | 10 A – 250 V |
|---|---|
| Insulation rating | 2.6 kV (1.2/50 µs) |
| Protection category | IP 20 |
| Ambient temperature range | -40 °C … +70 °C |
| Torque | 0.5 Nm |
The sockets are rated for 10 A at 250 V.
The insulation rating is 2.6 kV with a 1.2/50 µs impulse withstand.
All listed sockets have a protection category of IP 20.
They can be used from –40 °C up to +70 °C.
