The document describes an electronic product, including different types of contactors and relays. It includes 2-pole and 3-pole changeover contacts, PCB mount, 2-pole and 3-pole normally open contacts with a minimum contact gap of 3 mm, and a wide range of rated current and voltage. The product has good breaking capacity and reliable performance.

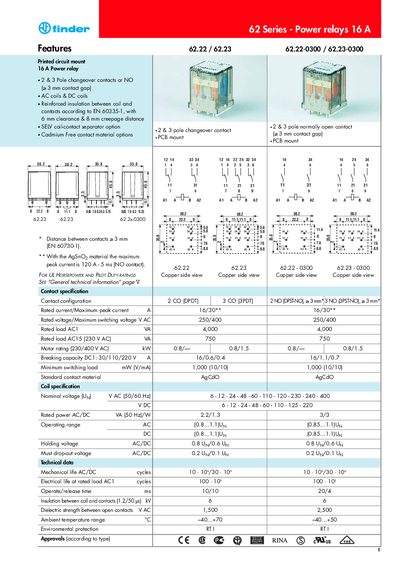

The Finder 62 Series power relays are 16 A devices available in PCB‑mount, plug‑in (92 series sockets), Faston 187, Faston 250 and flange‑mount versions. They offer 2‑pole or 3‑pole change‑over contacts as well as normally‑open contacts, with a 3 mm contact gap and reinforced insulation meeting EN 60335‑1.
The leaflet lists the electrical ratings (16 A rated, 30 A peak, 250/400 V AC, 4 kVA load), coil specifications for AC and DC supplies, mechanical and electrical life data, ambient temperature range (‑40 °C to +70 °C), and a range of accessories such as mounting adapters and retaining clips.
| Rated current | 16 A (maximum peak 30 A) |
|---|---|
| Rated voltage | 250 V / 400 V AC |
| Rated load | 4 kVA |
| Motor rating | 0.8 kW |
| Breaking capacity (DC) | 30 V / 110 V / 220 V A 16/0.6/0.4 |
| Contact gap | 3 mm |
| Insulation voltage | 400 V |
| Ambient temperature range | ‑40 °C … +70 °C |
| Mechanical life | 10 000 cycles |
| Electrical life at rated load | 100 000 cycles |
The relay is rated for 16 A continuous current with a maximum peak current of 30 A.
All contact configurations have a 3 mm gap.
The relays operate from –40 °C up to +70 °C.
