86 series timer modules can be used in conjunction with relays and sockets. The module has multiple functions and a wide voltage range (12-240V).

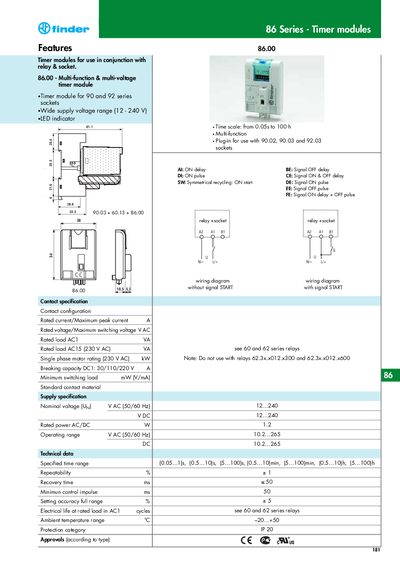

This handbook describes the Finder 86 Series timer modules, including the multifunction 86.00 and the mono‑function 86.10 and 86.20 variants. It lists compatible relay and socket types, wiring diagrams for start‑signal and no‑signal operation, and the functional behavior of each timer type.
Technical data such as supply voltage ranges, power ratings, protection class, ambient temperature limits, and time‑scale ranges are presented, along with ordering information, accessories, and approval markings for the modules and their associated sockets.
| Supply voltage range (AC) | 12 V – 240 V AC (50/60 Hz) |
|---|---|
| Supply voltage range (DC) | 12 V – 240 V DC |
| Rated power | 1.2 W |
| Protection category | IP20 |
| Ambient temperature range | -20 °C – +50 °C |
| Time scale range (86.00) | 0.05 s – 100 h |
It operates from 12 V to 240 V AC (50/60 Hz) or from 12 V to 240 V DC.
The modules have a protection category of IP20.
The 86.00 module plugs into 90.02, 90.03 and 92.03 sockets.
The 86.00 timer can be set from 0.05 seconds up to 100 hours.
