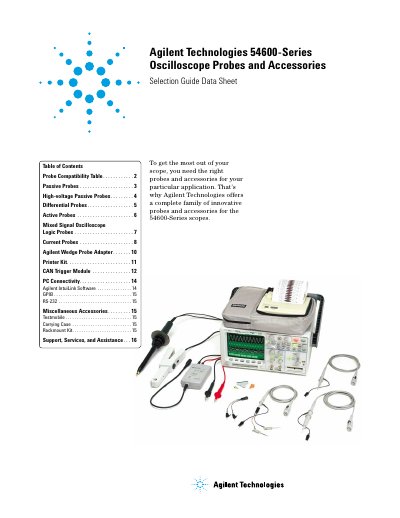

The document introduces the Agilent Technologies 54600-Series Oscilloscope Probes and Accessories Selection Guide Data Sheet. It mainly includes information such as the type of the measured signal, the type of the probe, the characteristics of the probe, and the scope of application of the probe.
The selection guide helps users choose the right probes and accessories for Agilent 54600-Series oscilloscopes. It includes a compatibility table and detailed specifications for each probe type.
The document covers passive, high‑voltage, differential, active, logic, and current probes, as well as adapters, kits, and other accessories such as the CAN Trigger Module and PC connectivity options.
| 10070C Bandwidth | 20 MHz |
|---|---|
| 10070C Attenuation Ratio | 1:1 |
| N2772A Differential Probe Attenuation Options | 20:1 and 200:1 selectable |
