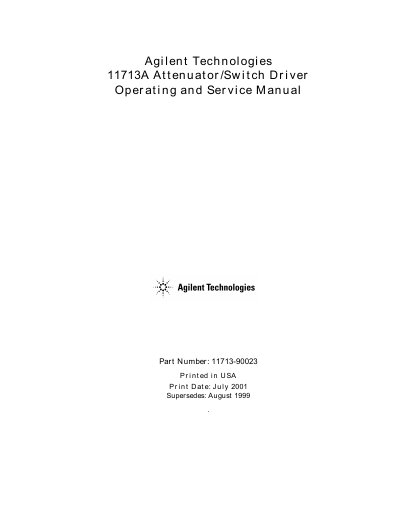

Describe the features and characteristics of the Agilent Technologies 11713A Attenuator/Switch Driver, as well as its usage and maintenance methods
The Agilent 11713A Attenuator/Switch Driver is a Safety Class I product designed for use in electronic test systems. The manual provides safety and regulatory information, power‑supply requirements, and detailed specifications such as voltage, current, and mechanical dimensions.
It also includes installation guidance, front‑panel operation, LED indicators, servicing procedures, and troubleshooting steps. Contact information for Agilent technical support worldwide is listed, along with warranty terms and safety grounding requirements.
| Power Supply Voltage | +24 ± 2.0 Vdc |
|---|---|
| Maximum Current (peak) | 1.3 A for 1 s |
| Driver Life | > 2,000,000 switchings |
| Net Weight | 4.1 kg (9 lbs) |
| Dimensions (H × W × D) | 102 mm × 213 mm × 295 mm |
| Maximum Load Inductance | 500 mH |
The instrument is warranted for a period of one year.
Support can be reached online at www.agilent.com/find/assist or via the regional phone numbers listed in the manual.
It is a Safety Class I product with an uninterruptible safety earth ground required.
The driver requires a +24 Vdc supply with a tolerance of ±2.0 V.
