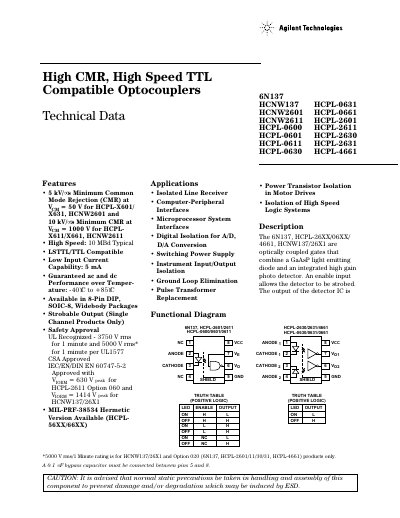

This PDF file provides detailed information on the HCPL-0600/0601/0611/0630/6N137/HCNW137/HCNW2601/HCNW2611 series of products, including features, functions, applications, safety approvals, etc.
The HCPL‑0600 series optocouplers combine a GaAsP LED with a high‑gain photodetector, offering 5 kV/µs minimum common‑mode rejection and 10 MBd typical data rate. They are LSTTL/TTL compatible, feature low input current (5 mA) and are available in 8‑pin DIP, SO‑8 and wide‑body packages.
The devices are rated for operation from –40 °C to +85 °C, with a supply voltage of 5 V and an output collector current up to 50 mA. Safety approvals include UL 1577 (3750 V rms) and CSA, and a hermetic version is available per MIL‑PRF‑38534.
| Minimum Common Mode Rejection (CMR) | 5 kV/µs at VCM = 50 V |
|---|---|
| Typical Data Rate | 10 MBd |
| Input Current Capability | 5 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| Output Collector Current | 50 mA |
The HCPL‑0600 series provides a minimum common‑mode rejection of 5 kV/µs at a VCM of 50 V.
The device is guaranteed to operate from –40 °C up to +85 °C.
Yes, they are UL recognized under UL 1577 with a 3750 V rms rating for 1 minute.
