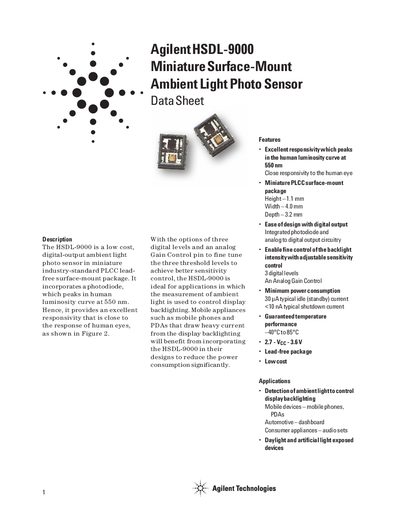

The Agilent HSDL-9000 is a low-cost, digital-output ambient light photo sensor in a miniature industry-standard PLCC lead-free surface-mount package. It incorporates a photodiode that peaks in the human luminosity curve at 550 nm, providing excellent responsivity close to the response of human eyes. The product features excellent responsivity, miniature PLCC surface-mount package, ease of design with digital output, adjustable sensitivity control, low power consumption, and guaranteed temperature performance.
The HSDL-9000 ambient light photo sensor provides excellent responsivity that peaks at 550 nm, matching the human eye's luminosity curve. It is offered in a lead‑free, miniature PLCC surface‑mount package (1.1 mm × 4.0 mm × 3.2 mm) and includes an integrated photodiode with digital and analog output options.
Designed for low power consumption, the device draws only 30 pA typical idle current and less than 10 nA in shutdown. It operates from 2.7 V to 3.6 V and is rated for temperatures from –40 °C to +85 °C, making it suitable for mobile devices, automotive dashboards, and consumer appliances that need ambient‑light‑controlled backlighting.
| Peak Sensitivity Wavelength | 550 nm |
|---|---|
| Viewing Angle | 120° |
| Supply Voltage | 2.7 V to 3.6 V |
| Idle Current (typical) | 30 pA |
| Shutdown Current (typical) | <10 nA |
| Operating Temperature Range | -40 °C to +85 °C |
| Digital Output Levels | 3 |
| Package Height | 1.1 mm |
| Package Width | 4.0 mm |
| Package Depth | 3.2 mm |
The HSDL-9000 operates from 2.7 V to 3.6 V.
It provides three digital output levels.
The typical idle (standby) current is 30 pA.
Peak sensitivity occurs at 550 nm.
