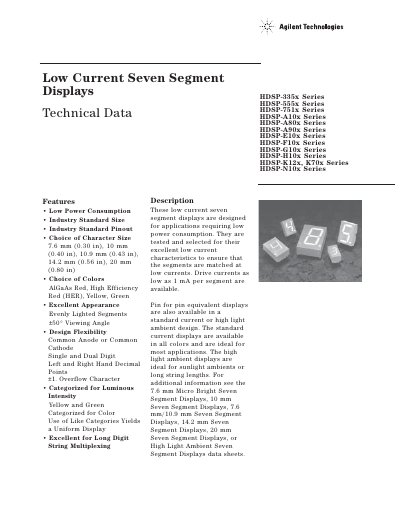

The Agilent low current seven‑segment displays are designed for applications that require very low power consumption, with drive currents as low as 1 mA per segment. They are offered in a variety of character sizes, colors and configurations, including common anode or common cathode, single or dual digit, and optional overflow characters.
The document provides detailed specifications such as package dimensions, pinout diagrams, luminous intensity bins for yellow and green series, and color wavelength ranges. It also lists part numbers for the HDSP‑335x, HDSP‑555x, HDSP‑751x, HDSP‑A10x, HDSP‑A80x, HDSP‑A90x, HDSP‑E10x, HDSP‑F10x, HDSP‑G10x, HDSP‑H10x, HDSP‑K12x/K70x and HDSP‑N10x series.
| Power consumption | Low |
|---|---|
| Character sizes | 7.6 mm, 10 mm, 10.9 mm, 14.2 mm, 20 mm |
| Available colors | AlGaAs Red, HER Red, Yellow, Green |
| Viewing angle | +50° |
| Minimum drive current | 1 mA per segment |
Drive currents as low as 1 mA per segment are available.
The displays are offered in 7.6 mm, 10 mm, 10.9 mm, 14.2 mm and 20 mm sizes.
Colors include AlGaAs Red, High‑Efficiency Red (HER), Yellow and Green.
Yes, a universal pinout brings the anode and cathode of each segment’s LED out to separate pins.
